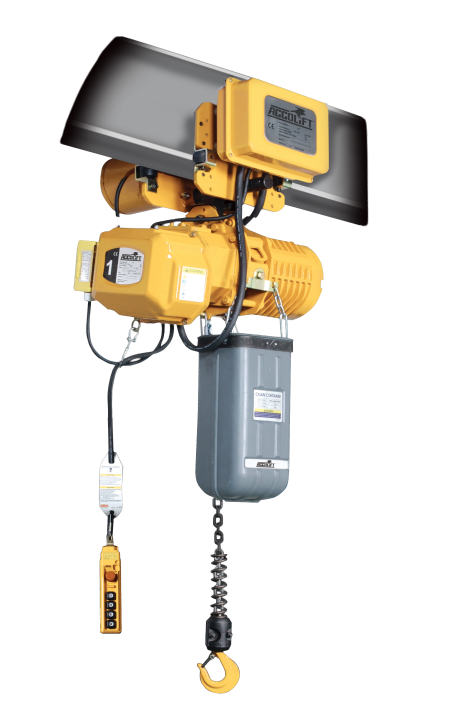

Accolift® Electric Chain Hoist

Accolift® Electric Chain Hoists are high quality products built for long service in industrial applications. Designed to form an integral hoist/trolley combination, Accolift® Trolleys keep the load equally distributed for easy traversing and long life. All Accolift® products are stocked at our Chicago warehouse, available for immediate shipment.  Accolift® Electric Chain Hoists are available with hook suspension, push/pull trolley or a motorized trolley. All hoists are available as single speed or inverter controlled.

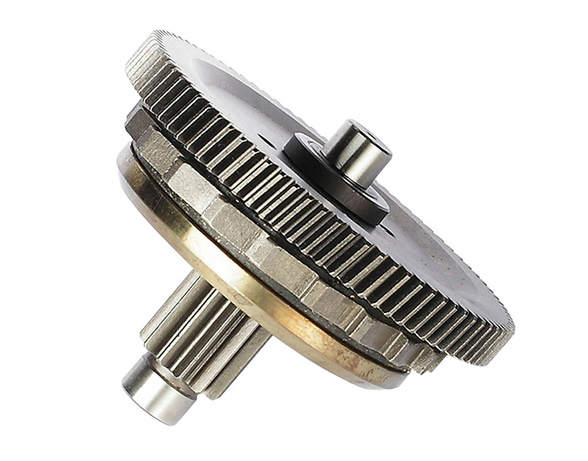

Weston Style Mechanical Load Brake

Weston Style Mechanical Load Brake, working in conjunction with disc type motor brake, provides a dual braking system for load lowering control. Mechanical Load Brake can easily be inspected thru the inspection port provided on the top of the gearbox.

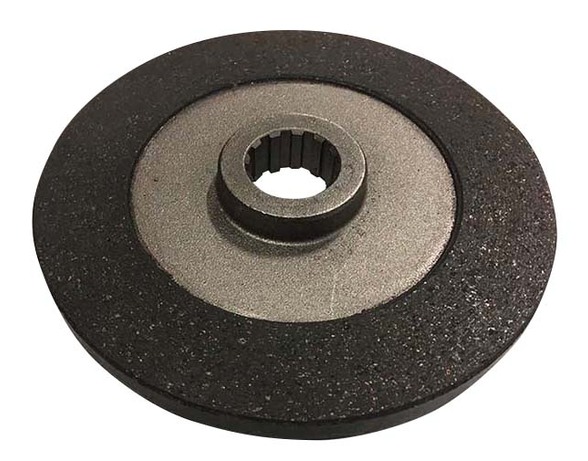

Hoist Motor Brake

A direct acting DC rectified brake with exceptional stopping power providing cooler operating temperatures for the motor. Designed for easy access and simple maintenance.

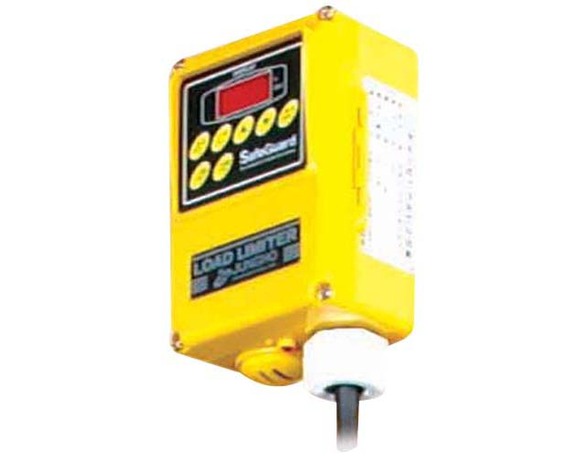

Overload Alert

Overload Alert is a current sensing device that stops the up motion of the hoist and sets off an audible alarm when the hoist motor draws too many amps due to an overload condition. When the hoist is lowered, the alarm stops and the overload device is reset.

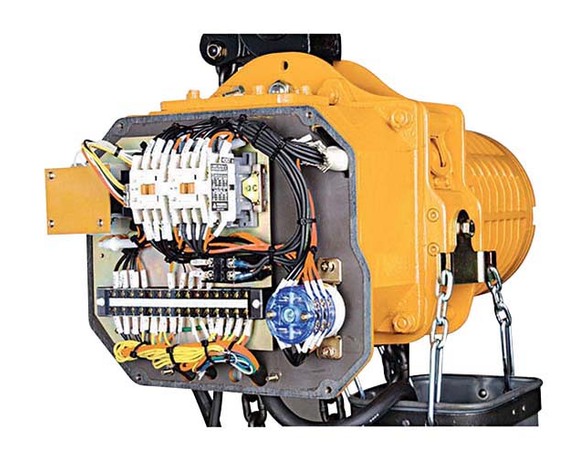

Electric Control Panel

Single speed hoists are reconnectable for 208/230/460V power supply. Controls are housed in a NEMA12 enclosure. Standard control transformer output is 115V with an option available for 48V. Standard power supply cord length is 15'.

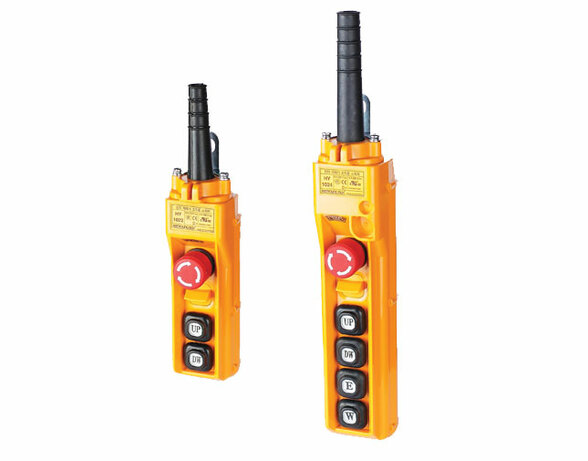

Push Button Controls

Compact design to enable one-handed operation. Rated NEMA 4 protection. Mushroom on/off button included. Push button cable has strain relief built in to prevent cable damage.

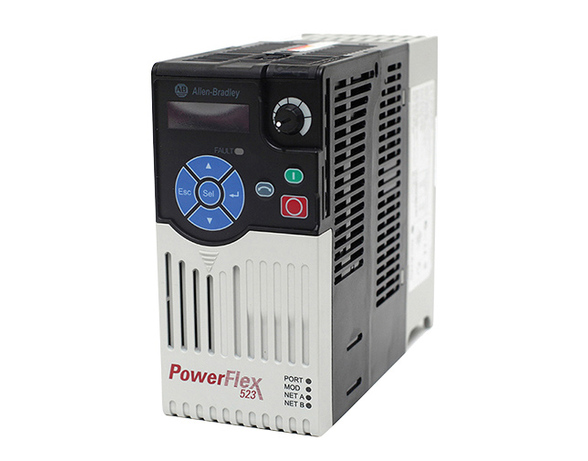

Variable Frequency Drive

VFD hoists are available programmed for 2-speed operation. VFD hoists can be supplied for 230-1-60, 208/230-3-60 and 460-3-60 power supplies. Inverter provides run time for maintenance operations.

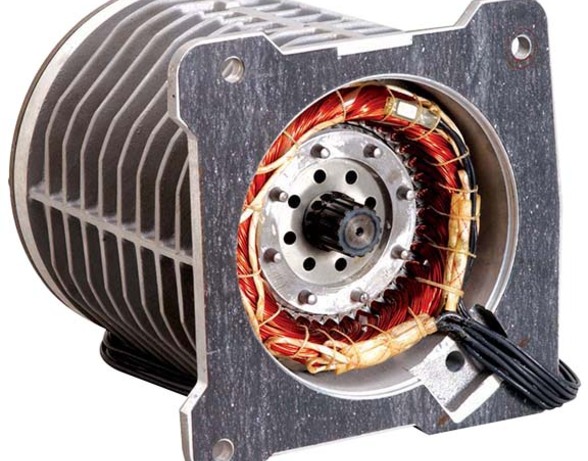

Heavy-Duty Hoist Motor rated for 30-minute duty

The hoist motor is a high torque design and is rated 30-minute duty. Class F motor insulation and standard thermal motor protection are included.

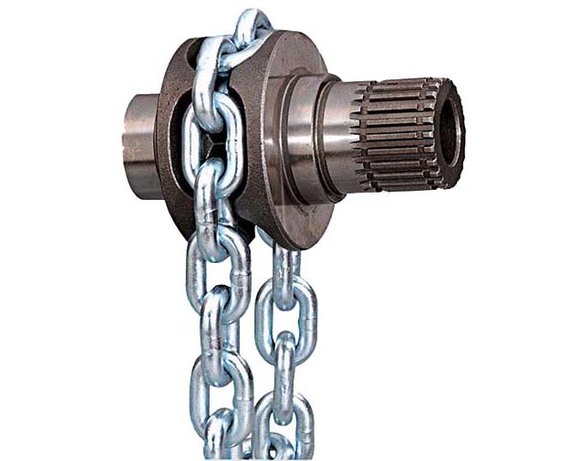

Load Sheave / Chain Guide

Full floating chain guide assures proper engagement of chain on load sheave. Load Sheave features 4 or 5 pockets (depending on model) for better distribution of the load.

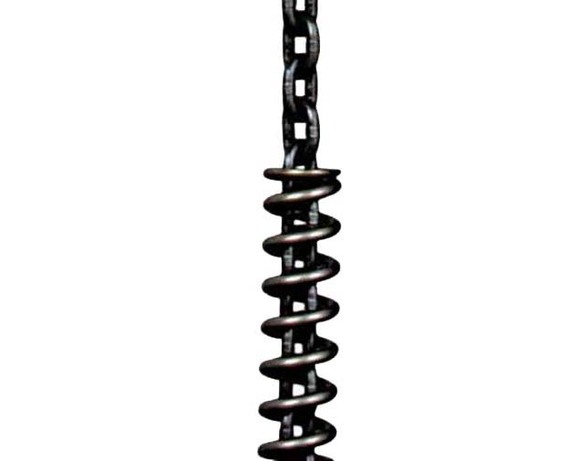

Grade 80 load chain

Grade 80 load chain is case hardened and has a high resistance to wear and corrosion. All hoists are stocked with 20 feet of lift. Longer lifts are available per requirement. Nickel Plated load chain and Stainless-Steel load chain is available as an option.

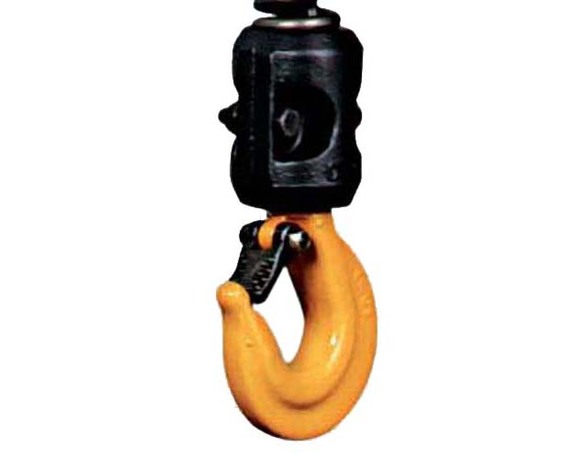

Forged carbon steel hook with a heavy-duty hook latch

Load hook is a forged carbon steel hook with a heavy-duty hook latch. Thrust bearing in load hook allows 360˚ rotation to prevent twisting of load chain. Top hook, for hook suspended hoists, is nonrotating. Bullard hooks, Stainless Steel hooks and Bronze hooks are available for some models as an option. Contact factory.

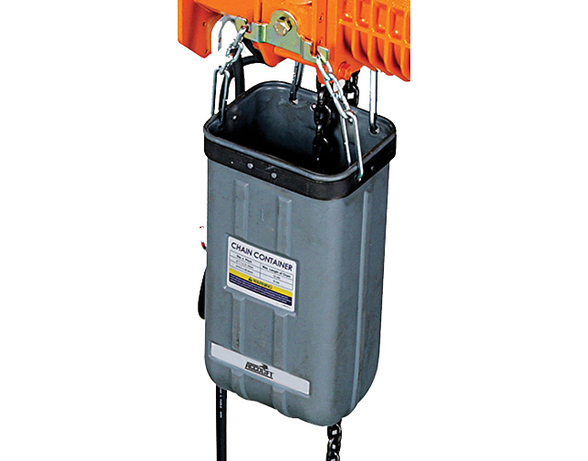

Chain Container

Chain container is standard equipment and is either molded with thick polypropylene material or fabricated from steel to securely contain the chain and chain lubricant. Optional canvas containers and engineered containers for long lift applications are available as an option.

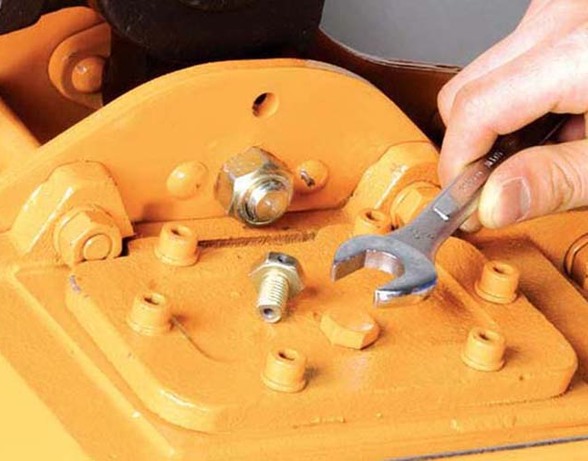

Gearbox with alloy steel helical and spur gear reduction

The gearbox utilizes an alloy steel helical and spur gear reduction. An access port is included on the top of the gearbox to allow visual inspection of the mechanical load brake. Lubrication is easily maintained from the top of the hoist.

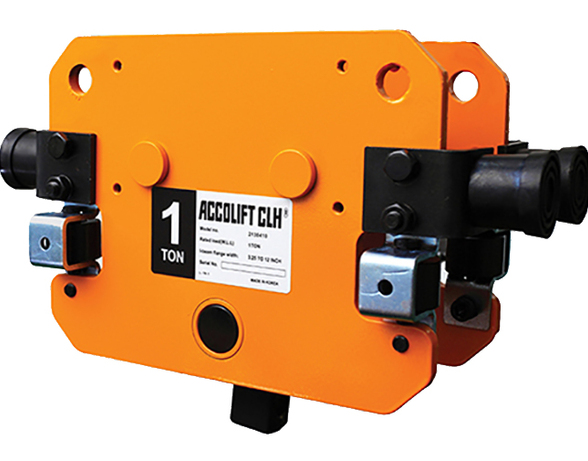

Push/Pull Trolley

Trolley is adjustable for a range of 3.25” to 12” flange widths with no additional materials required. Side guide rollers are included to promote smooth trolley motion and to minimize wheel and beam wear. Wheels are dual tread design for operation on tapered or flat flange beams. Trolleys include drop down lugs and rubber bumpers as standard equipment.

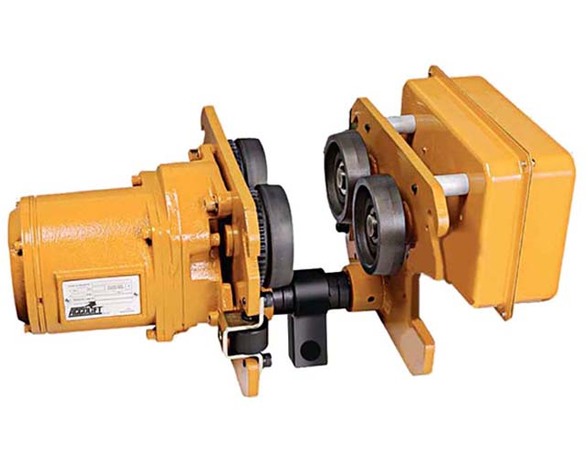

Motorized Trolley

Trolley is adjustable for a range of 3.25” * to 12” flange widths with no additional materials required. Side guide rollers are included to promote smooth trolley motion and to minimize wheel and beam wear. Wheels are dual tread design for operation on tapered or flat flange beams. Trolleys include drop down lugs and rubber bumpers as standard equipment. Trolley motor includes class F insulation and a disc type motor brake. Motor is rated for 30-minute duty and includes standard thermal motor protection.
* 5" to 12" on 7-1/2T model.

CAPACITY
  • 1 – 20 Ton
VOLTAGE
  • Three-phase models available
  • 208-230/460V
  • 230V configuration available on applicable model
CLASSIFICATION
  • FEM 2m
  • Hook suspension hoists: 40% ED
  • Motor trolley mounted hoists: Hoist/Trolley – FEM 2m/2m, 40/40% ED
BODY
  • Heavy-duty design for rugged industrial applications
  • Designed for higher capacities and dependable performance
  • Protection class: IP54 and IP55
OPERATION
  • Single-speed and VFD-controlled models available
  • Standard lift: 20 ft
  • Standard pushbutton cord length: 18 ft
  • Pushbutton pendant control with emergency stop
  • Double-action over-winding limiter helps prevent over-lifting or lowering of the chain
  • Overload alert sound limiter provides an audible “beep” when overloaded
  • All units are factory tested at 125% of rated capacity
LOAD CHAIN
  • 0.280 in., 0.370 in., or 0.441 in. load chain, depending on capacity/configuration
  • Available with 1, 2, 3, 4, 6, or 8 chain falls, depending on model and capacity
BRAKE
  • Dual electromagnetic brake system
OPERATING CONDITIONS
  • Ambient temperature: -4° to +104°F
  • Maximum side pulling angle: 3°
  • Sound level: 80 dB(A)
  • Protection class: IP54 and IP55
SPEED
  • Single-speed lifting speeds vary by model/capacity, up to 27 fpm
  • VFD-controlled lifting speeds vary by model/capacity, up to 21/7 fpm
  • Motor trolley traversing speeds vary by configuration
APPLICATIONS
  • Available in hook suspension and trolley-mounted configurations
  • Motorized trolleys are suited for heavier capacities and longer lift applications
  • Plain and hand-geared trolley configurations provide close control of horizontal movement
QUALITY
  • Components undergo numerous tests and inspections
  • Quality parts and mechanisms are designed to provide proper lifting and traversing of the load
  • Production processes meet stringent quality requirements
  • Complete electric chain hoists are factory load tested at 125% of nameplate-rated capacity
OPTIONS
  • Longer lifts available; longer lifts may require a different chain container
  • Hook suspension, motor trolley, plain trolley and geared trolley configurations
  • Single-speed or VFD-controlled configurations
