UBC Entertainment Universal Beam Clamp
Holds True Every Time
UBC Entertainment Universal Beam Clamp
Holds True Every Time

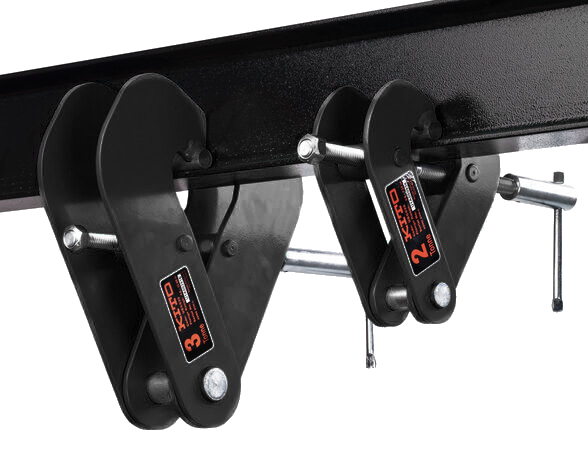

UBC beam clamps can be used as a temporary anchor point or as a below-the-hook device. You’ll have peace of mind knowing the secure clamp uses proven lock-nut protection to rule out loosening due to vibrations. Safe and functional, our UBC is also designed with a wide adjustable-jaw opening and both a left- and right-hand clamp screw for quick operation.
Temporary or Semi-Permanent Anchor Point
The Kito UBC Entertainment Universal Beam Clamp is the perfect accessory when a temporary or semi-permanent hoist anchor point is required.

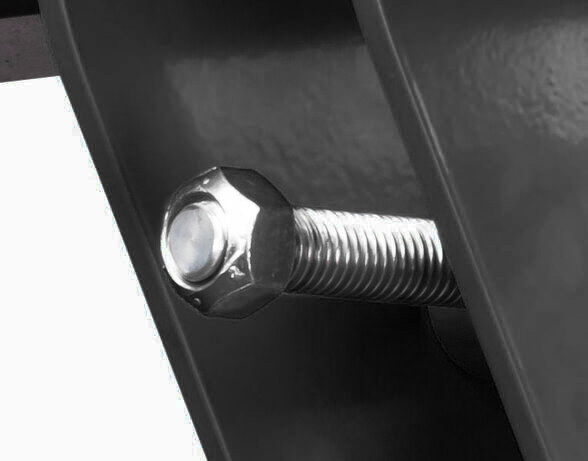

Locknuts That Stay Tight
Designed for added safety and to resist loosening, the UBC’s locknut protection feature keeps things tight.

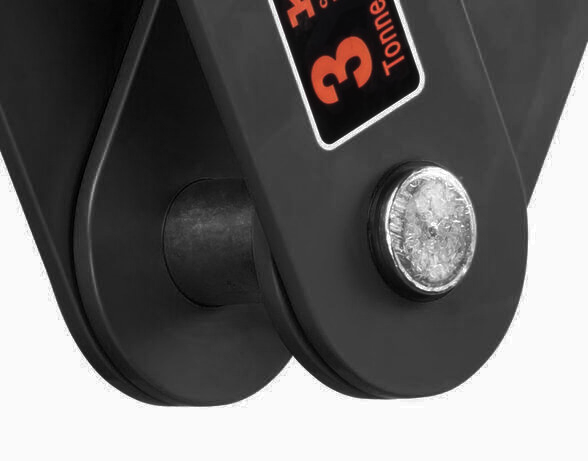

Designed for Low Headroom
Take advantage of low headroom in your application with a built-in suspension pin.
CAPACITY
- 1- 5 Ton
COMPLAINCE
- Meets ASME BTH-1, ASME B30.20 and complies with portions of ASME B30.16 for use with manual and powered hoists
- Design factor minimum of 5:1 per ASME B30.16 requirements
BODY
- Lightweight portable design
- Made in the USA
OPERATION
- Jaw opening adjusts for a wide range of tapered or flat flanged beams
- Left and right-hand clamp screw allows for a quick clamping and unclamping
- For use with manual and powered hoists
HARDWARE
- Lock nut feature resists loosening to improve secure clamping
- Built-in suspension pin for low headroom
APPLICATIONS
- Entertainment applications
- Overhead lifting and vertical rigging
- Holding and positioning
OPTIONS
- Suspender for perpendicular mounting and for over-sized hooks
